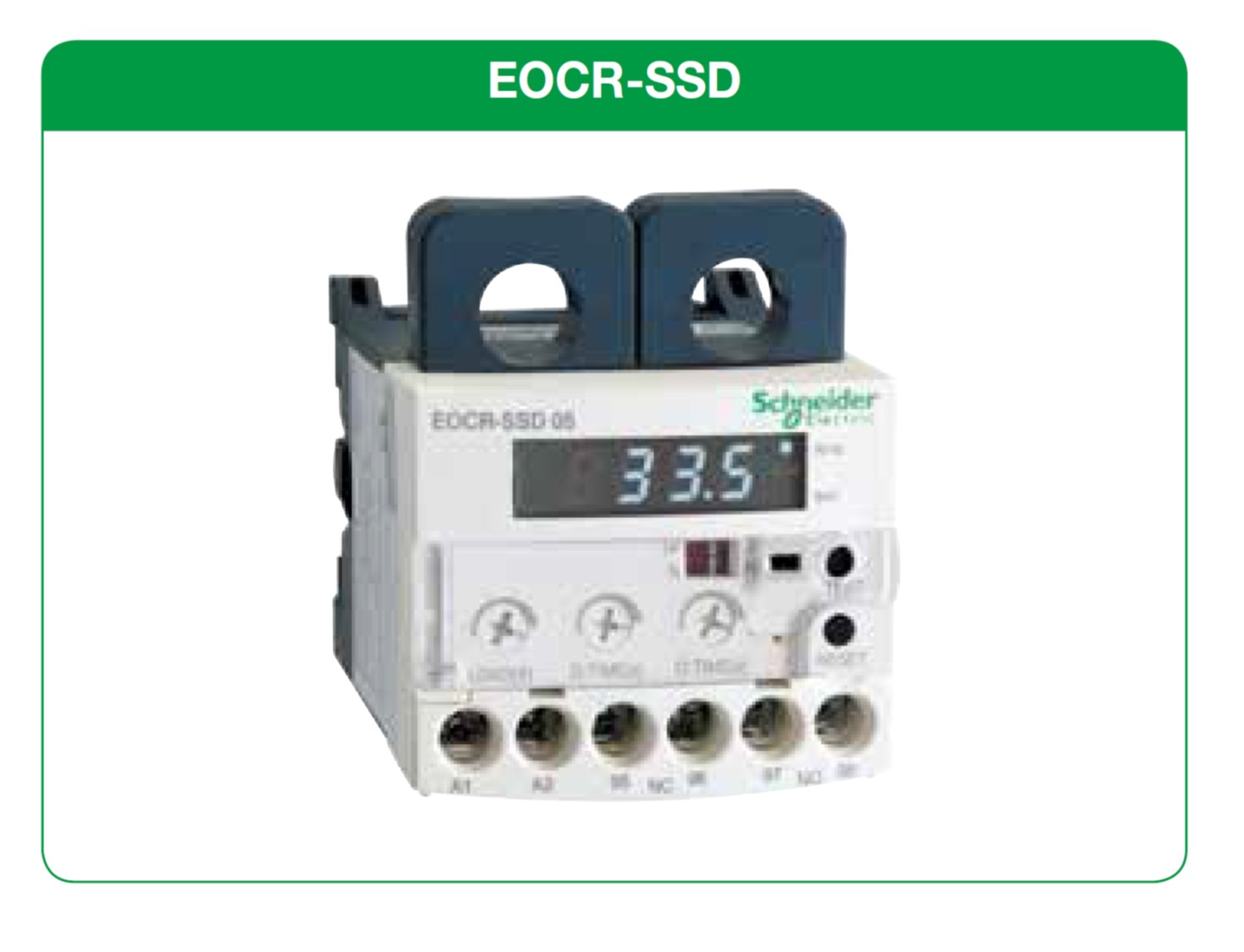

EOCR-SSD

• The compact design enables installation in a narrow space (can be replaced with an SS type on 1:1 basis)
• Accurate display of operating current via the frontal LED display (the higher current value will be displayed, whichever is higher between L1 and L3)
• LED window displays the trip cause when a trip occurs
• Accurate phase loss protection (3 sec)
• Easy application: Can select between single-phase (1P) or 3-phase (3P) using DIP SW.
• Works well with an inverter system: 20~200Hz
• Can select contact output[Fail safe(N)/Non-fail safe(R)]: Maximum convenience for sequence configuration
• Easy installation, with DIN Rail and Panel Mounting compatibility

Over Current

05 : 0.5~6A
30 : 3~30A
60 : 10~60A
